Desain pita serat terintegrasi tinggi
Elemen Penguatan Aramid memberikan Kabel Kekuatan Tarik yang sangat baik
Bahan luarnya tahan korosi, tahan air, tahan UV, tahan api dan ramah lingkungan.
Distribusi kabel dalam ruangan
Interkoneksi antar instrumen, peralatan komunikasi
Patuh dengan standar YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, dll.

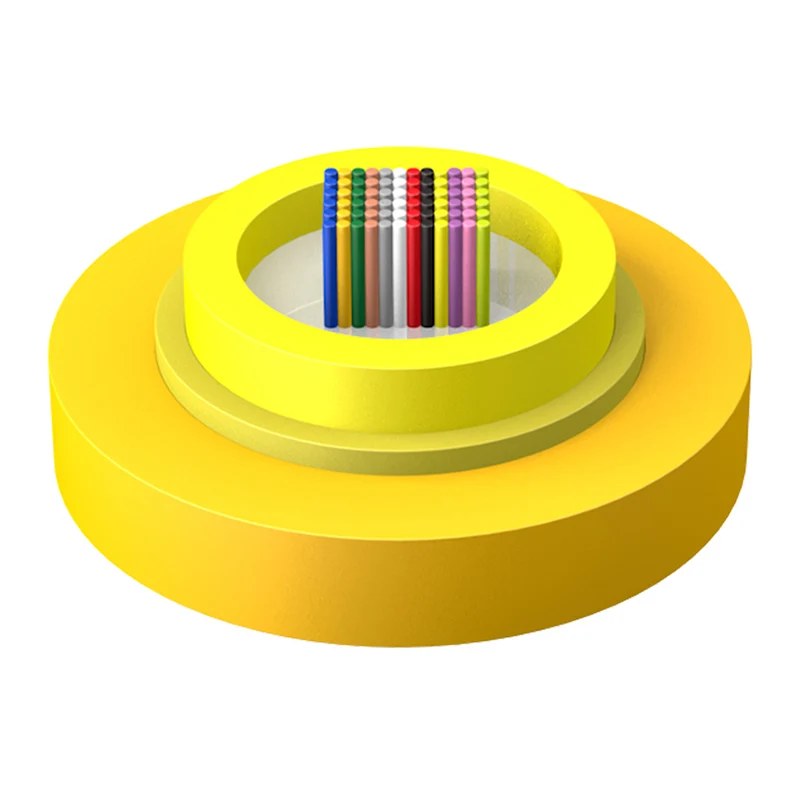

1. Pita serat
2. Tabung longgar
3. Benang Aramid
4. Jaket keluar
|
Model kabel |
Jumlah serat |
Berat Kabel (Ref) (kg/km) |
Kekuatan tarik Jangka panjang/pendek |
Hancur perlawanan Jangka panjang/pendek (N/100mm) |
Radius Bending Dinamis/statis (mm) |
|
GJFDV-48 |
12f × 4 |
84 |
200/660 |
300/1000 |
25d/12.5d |
|
GJFDV-72 |
12f × 6 |
90 |
200/660 |
300/1000 |
25d/12.5d |
|
GJFDV-96 |
12f × 8 |
100 |
200/660 |
300/1000 |
25d/12.5d |
|
GJFDV-144 |
12f × 12 |
125 |
200/660 |
300/1000 |
25d/12.5d |
|
Tipe serat |
Atenuasi |
OFL |
Bandwidth Mode Efektif |
10 Gbit/S Ethernet Link Length |
Radius tikungan minimum |
|||
|
Kondisi |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Nilai khas |
Nilai maksimum |
Nilai khas |
Nilai maksimum |
|||||
|
Satuan |
db/km |
db/km |
db/km |
db/km |
MHZ.KM |
MHZ.KM |
m |
mm |
|
G657A1 |
0.36/0.22 |
0,5/0,4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0,5/0,4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Suhu transportasi/ penyimpanan/ pengoperasian: -20 ℃ -+60 ℃, suhu pemasangan: -5 ℃ -+50 ℃
