Desain pita serat terintegrasi tinggi
Elemen Penguatan Aramid memberikan Kabel Kekuatan Tarik yang sangat baik
Bahan luarnya tahan korosi, tahan air, tahan UV, tahan api dan ramah lingkungan.
Distribusi kabel dalam ruangan
Interkoneksi antar instrumen, peralatan komunikasi
Patchcord dan Pigtail
Memenuhi standar YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, dll., Dan kabel PVC memenuhi persyaratan persetujuan UL dan OFNP: Jaket LSZH yang berbeda memenuhi sertifikasi IEC 60332-1 atau IEC 60332-3C.

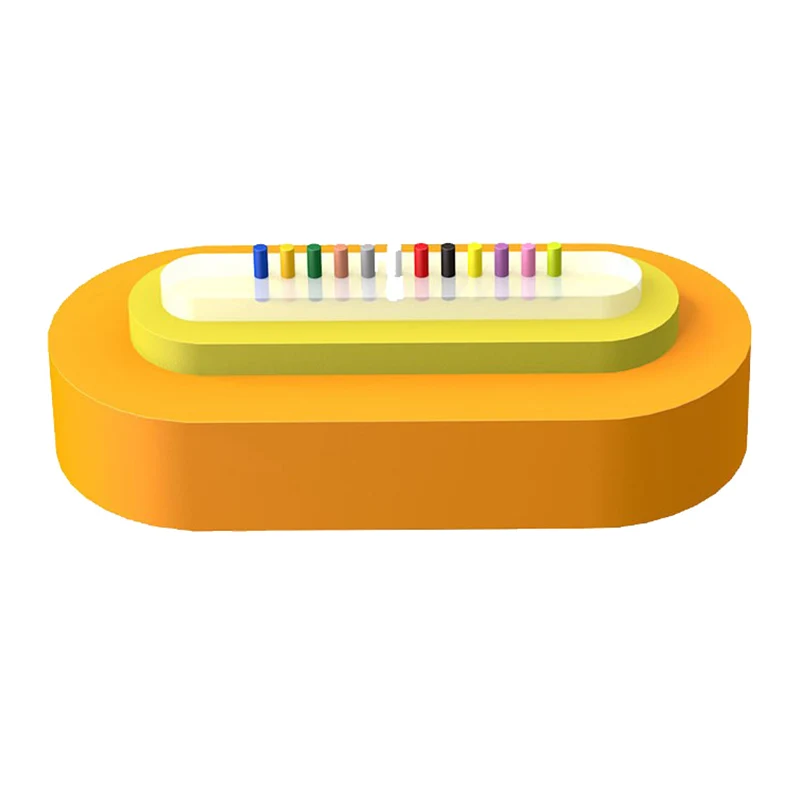

1. Serat
2. Pita serat
3. Benang Aramid
4. Jaket
|
Model kabel |
Jumlah serat |
Berat Kabel (Ref) (kg/km) |
Kekuatan tarik Jangka panjang/pendek |
Hancur perlawanan Jangka panjang/pendek (N/100mm) |
Radius Bending Dinamis/statis (mm) |
||
|
4 |
(3,7 ± 0,3)*(2,3 ± 0,3) |
4 Pita Serat |
4.7 |
6.6 |
80/150 |
300/1000 |
25d/12.5d |
|
6 |
(4,2 ± 0,4)*(2,5 ± 0,2) |
6 Pita Serat |
5.1 |
7.3 |
|||
|
12 |
(4,8 ± 034)*(2,3 ± 0,3) |
12 Pita Serat |
5.9 |
8.0 |
|
Tipe serat |
Atenuasi |
OFL |
Bandwidth Mode Efektif |
10 Gbit/S Ethernet Link Length |
Radius tikungan minimum |
|||
|
Kondisi |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Nilai khas |
Nilai maksimum |
Nilai khas |
Nilai maksimum |
|||||
|
Satuan |
db/km |
db/km |
db/km |
db/km |
MHZ.KM |
MHZ.KM |
m |
mm |
|
G652D |
0.36/0.22 |
0,5/0,4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657A1 |
0.36/0.22 |
0,5/0,4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0,5/0,4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Suhu transportasi/ penyimpanan/ pengoperasian: -20 ℃ -+60 ℃, suhu pemasangan: -5 ℃ -+50 ℃
